What You'll Need Before You Start Wiring LEDs

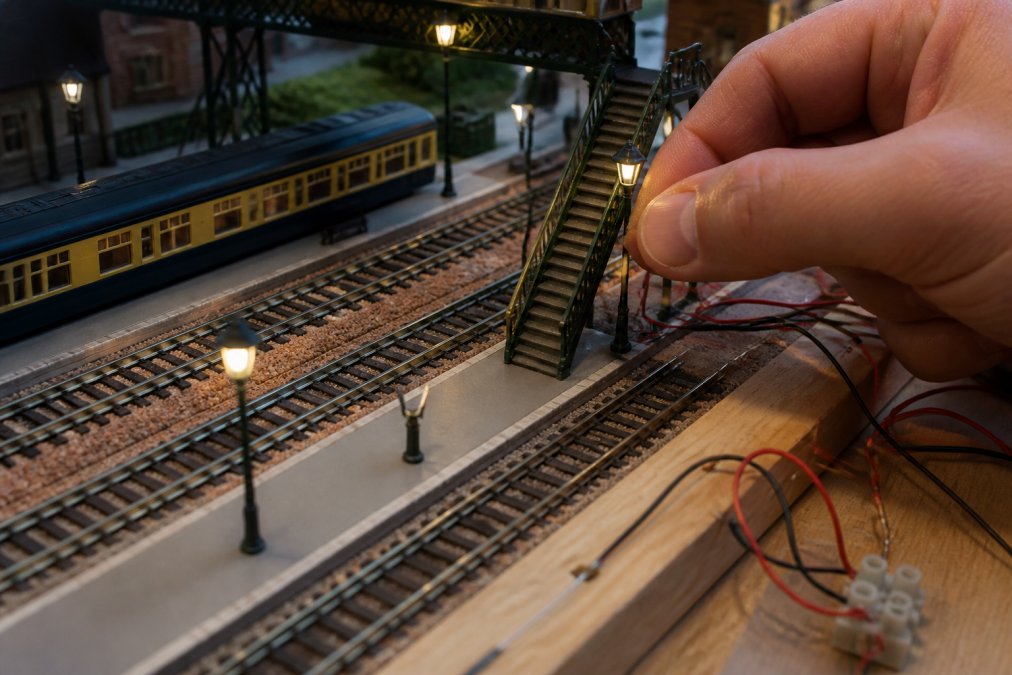

Knowing how to wire model railway LEDs is one of the quickest ways to make a layout feel alive, but it is also where a lot of beginners burn out components. The fix is simple, and it comes down to understanding that how to wire model railway LEDs is really about controlling current, not just joining wires.
LEDs are light-emitting diodes: semiconductor components that emit light when current flows through them in one direction only, and which will fail almost instantly if that current is not limited.
Before you pick up a soldering iron, gather the basics to make it easier:
- A low-wattage soldering iron (25-40W) with a fine tip (if I'm soldering a track, I want a far larger one!)
- Rosin-core solder and a damp sponge or brass wool
- Wire strippers and small side cutters (check ours out)
- Heat-shrink tubing
- A multimeter for checking voltage and continuity (if you don’t buy pre-LEDs with resistors like most of ours)
- Your LEDs, resistors, and a suitable power supply
A common mistake is buying LEDs and resistors separately without checking they match. A matched kit removes the guesswork entirely.
Step 1: Choose Your LEDs and Find the Correct Resistor
The right resistor is the single most important part of any LED circuit. Get it wrong and the LED either glows dimly or dies within seconds.
For most 12V DC model railway lighting, a 1kΩ (1000 ohm) resistor suits a standard 3mm or 5mm LED drawing around 20mA. That value gives a comfortable brightness without overdriving the diode. If you want a softer, more realistic glow for building interiors, step up to 1.5kΩ or 2.2kΩ.
A pre-matched option takes the maths out of it. The Warm White 3mm LED Kit with Resistors - 12V DC ships with ten LEDs and correctly paired resistors for 9-13V DC systems, covering locomotives, carriage lighting, signals, and street scenes.
At Hobbytrax.com.au, we make it easy by providing LEDs pre-set in a variety of colours. This way, you don't need an LED resistor calculator.
Using a Model Railway LED Resistor Calculator
A model railway LED resistor calculator works out the resistance you need from three inputs: supply voltage, LED forward voltage, and LED current. The formula is:
R = (Supply Voltage - LED Forward Voltage) / LED Current
For a white LED with a 3.2V forward voltage on a 12V supply at 20mA:
R = (12 - 3.2) / 0.02 = 440Ω
Round up to the next standard value (470Ω) for safety. If you would rather skip the arithmetic, a 1/4W metal film resistor pack in a range of values lets you experiment without ordering single components.
|
LED Colour |
Typical Forward Voltage |
Resistor for 12V @ 20mA |
|---|---|---|
|
Red |
2.0V |
500Ω (use 560Ω) |
|
Yellow |
2.1V |
495Ω (use 560Ω) |
|
Warm White |
3.2V |
440Ω (use 470Ω) |
|
Blue |
3.2V |
440Ω (use 470Ω) |
Step 2: Wiring LEDs in Parallel vs Series for Your Layout
We have many colours of Wiring
The choice between parallel and series wiring comes down to how you want the layout to behave. Parallel wiring is the standard for model railways because each LED runs independently. Series wiring suits small clusters where you want a single feed and identical brightness.
How to Wire LEDs in Parallel
Connect every LED's anode to the positive supply rail and every cathode (through its own resistor) to the negative rail. Each LED receives the full supply voltage, so one failing LED does not take the rest down with it. This is the setup to use for building lighting, platform lamps, and signals, where you want individual control.
How to Wire LEDs in Series
Chain the LEDs anode-to-cathode, with a single resistor at the end of the chain. The supply voltage is divided across the LEDs, so you need a higher voltage to drive more than three or four in a chain. Series wiring is tidy for carriage lighting where all lights should glow identically, but one broken link kills the whole run.
Step 3: Pick the Best Power Supply for Model Railway Lighting
The best power supply for model railway lighting is a regulated 12V DC unit with enough current headroom to run every LED on the layout at once, plus a margin. LEDs are low-draw, but a layout with fifty of them quickly adds up.
Warm White 3mm LED Kit with Resistors →
A practical setup uses a dedicated regulated 12V DC supply feeding a distribution board, which then branches out to each lighting zone. For the Hobby Trax power distribution board, use a stable 12V DC power supply rated at 2A or greater. Check connector compatibility and polarity before connecting, and keep the total accessory load within the board’s 2A limit.
For tidy distribution, a 12-way 5A screw terminal block lets you split the supply into separate lighting circuits and cut it down to whatever length you need.
12-Way 5A Screw Terminal Block Connector Strip
We also do a 3A and multiple sizes.
Step 4: Solder and Connect Your LED Wiring
Keep soldering sessions short. An LED die is sensitive to heat, so touch the iron to the joint for two or three seconds at most and let it cool before moving on.
Work through it methodically:
- Tin the LED legs and the wire ends separately.
- Slide heat-shrink tubing onto the wire before you join anything.
- Solder the joint quickly, then let it cool undisturbed.
- Slide the heat-shrink over the joint and shrink it with the iron's side.
- Check polarity: the longer leg is the anode (positive), the shorter leg is the cathode (negative).
If you are soldering inside a locomotive or carriage, route wires along the chassis and secure them with a dab of hot glue so they cannot snag on moving parts.
Step 5: Test, Secure and Hide the Wiring
Test before you hide. Power up the circuit on the bench, check every LED lights, then check again after installation. A multimeter set to continuity confirms each joint without needing power.
Once everything works, secure the wiring with hot glue, cable clips, or self-adhesive mounts. Run wires along the underside of the baseboard where possible, drilling small holes to pass them between levels. Label the ends of each circuit with tape or a marker so future troubleshooting does not become a guessing game.
Common Mistakes to Avoid When Wiring Model Railway LEDs
The most common mistake is omitting the resistor entirely. An LED connected directly to 12V will draw far more current than it can handle and fail almost immediately.
Other frequent errors:
- Reversing polarity and wondering why nothing lights
- Using one resistor shared across parallel LEDs, which causes uneven brightness
- Choosing a power supply with too little current capacity for the total load
- Soldering for too long and cooking the LED die
- Running lighting wires alongside track feeds without separation, which can introduce interference
Troubleshooting LED Wiring Issues
Start with the simplest checks: power at the supply, then at the distribution point, then at the LED itself.
- LED does not light: Check polarity first, then test the LED on its own with a multimeter.
- LED glows dimly: The resistor value is too high, or the supply voltage is sagging under load.
- LED flickers: A loose joint or a wire brushing against a moving part. Re-solder and secure the run.
- One LED in a parallel run is dead: That LED has failed. The rest should keep working, which is the main advantage of parallel wiring.
- Whole series run is out: One link has broken. Test each LED in turn to find the culprit.
For hobbyists who want to talk through a specific setup before ordering, contact HobbyTrax for advice.
Getting lighting right transforms a static layout into something that feels lived in, and the difference between a frustrating afternoon and a satisfying build usually comes down to matching your components properly. HobbyTrax supplies the matched LED kits, precision resistors, and regulated power supplies that take the guesswork out of the job. Get started with HobbyTrax and bring your model railway to life with lighting that works the first time.
Frequently Asked Questions
What resistor do I need for a 12V model railway LED?
For a standard 3mm LED drawing about 20mA, you need a resistor around 470Ω to 560Ω when running from 12V DC. The exact value depends on the LED's forward voltage. HobbyTrax sells a Warm White 3mm LED Kit with Resistors for 12V DC (pack of 10) that includes correctly matched resistors. If you are using a different LED, use a model railway LED resistor calculator to find the right value.
Can I wire model railway LEDs directly to the track power?
You can, but it is not recommended for beginners. Track voltage varies with speed and direction, and DCC track power is a square wave that will damage a standard LED without a decoder. For reliable lighting, use a separate 12V DC power supply and a distribution board. This gives consistent brightness and protects your LEDs from voltage spikes.
How do I connect multiple LEDs in parallel for a layout?
Wire each LED's anode to the positive supply rail and each cathode to the negative rail, with a resistor on each LED. This keeps every LED at the same brightness. Use a 12-way screw terminal block to keep the connections tidy. HobbyTrax stocks a 12-Way 5A Screw Terminal Block Connector Strip that can be cut to size.
Do I need a separate power supply for model railway lighting?
Yes, a separate 12V DC supply is best. It isolates your lighting from track power, so lights stay on when the train stops. A 2A supply like the Hobby Trax 12V DC 2A Power Supply with 5.5mm Barrel Plug can power many LEDs. Add up your LED current draw and leave headroom. If unsure, contact HobbyTrax for advice.
